Key Features:
Chinese/English switchable interface version, allowing customers to intuitively monitor the real-time operating status of the entire system.

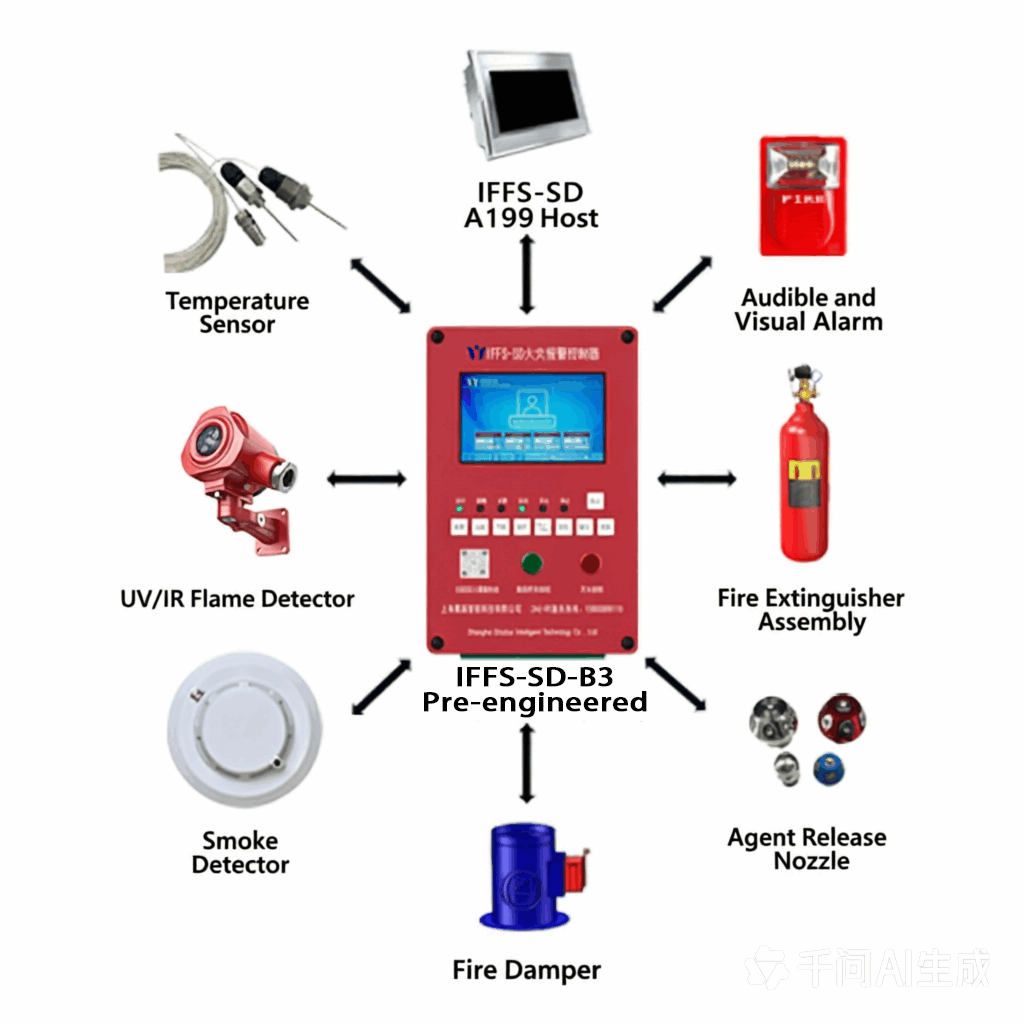

The system provides real-time monitoring of sensors, extinguishing cylinder assemblies, actuation valves, main power supply, and backup power supply, displaying their normal/abnormal status visually.
The system features real-time temperature monitoring with accurate display; each temperature sensor can be freely configured with two alarm threshold levels.
The system includes a bypass/disable function — when any abnormality is detected on any input or output port, the system can disable that port to allow temporary normal operation.
The system can precisely identify and visually display which sensor has triggered a pre-alarm.
Black box data logging — the system records all anomalies occurring under any condition in real time with full detail.
Network communication capability — equipped with IP communication functionality, enabling interfacing with fire alarm control panels and PLC systems.
Application Areas:
High-end precision equipment, semiconductor manufacturing equipment, data centers, communication base stations, archives, financial centers, and other manned areas housing valuable equipment. It is currently the most widely used clean agent.
Product Name | Heptafluoropropane (AFM) Pre-engineered Fire Extinguishing Device | |||||
Parameter | AFM-10A | AFM-20A | AFM-30A | AFM-40A | AFM-70A | AFM-80A |
Model | AFM-10A | AFM-20A | AFM-30A | AFM-40A | AFM-70A | AFM-80A |
External Dimensions (mm) | 350*300*900 | 350*300*1400 | 400*350*1600 | 400*350*1600 | 500*400*1800 | 500*400*1900 |
Extinguishing Agent Weight (kg) | 7.5 | 15.0 | 22.5 | 30.0 | 52.5 | 60.0 |
Protected Volume (m³) | 10.0 | 20.0 | 30.0 | 40.0 | 70.0 | 80.0 |
Material & Coating | Stainless Steel 304 with Melamine Baked Paint | |||||
Operating Temperature Range | -10℃ ~ 50℃ | |||||
Input Voltage | DC 24V 3A | |||||
Temp. Sensor Capacity | 1 ~ 8 Units | |||||
Ext. Sensor Input Capacity | 3 Channels (Normally Open) | |||||
Operating Power | 7.5 W | |||||
Max. Power | 70 W | |||||
Fault Output | 1 Group | |||||
Alarm Output | 3 Groups | |||||
Extinguishing Output | 3 Groups | |||||
Standard Buttons | Power Switch, Extinguishing Button | |||||
Remote Extinguishing Button | Optional | |||||
Agent Characteristics | 1. Ideal for manned areas with valuable equipment such as high-end precision instruments, semiconductor facilities, data centers, communication base stations, archives, and financial centers. It is currently the most widely used clean agent. | |||||
